100x acceleration sensitivity improvement over standard OCXO’s

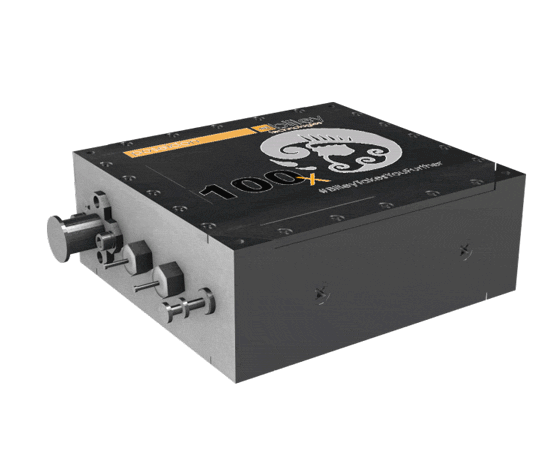

Poseidon-1

Acceleration Sensitivity

Acceleration Sensitivity is a crystal oscillator's inherent sensitivity to external forces applied in any direction. Quartz crystals have a very special place in our hearts at Bliley. They literally provide the heartbeat of the timing electronics we've all come to rely on daily. Our SC cut crystals enable high-performance acceleration sensitivity and very low phase noise.

Achieve Low Phase Noise

The cool thing with quartz crystals is that if you apply a voltage, the quartz will begin to vibrate. The down-side is that if you apply a vibration, the quartz will produce a voltage. This voltage shows up as phase noise and is a real drag.

The magnitude of this phase noise or frequency deviation is directly proportional to the amount of force or acceleration applied…the higher the force > the greater the frequency instability > the greater the phase noise.

Bliley's low phase noise OCXO oscillators are designed to maintain low phase noise even when higher forces or acceleration are present.

Frequency Instability

Frequency instability due to a crystal's acceleration sensitivity impacts many aspects of oscillator performance such as:

Learn how to improve dynamic phase noise from our blog post

height

2.5in

length

2.7in

depth

1.0in

weight

0.4lbs

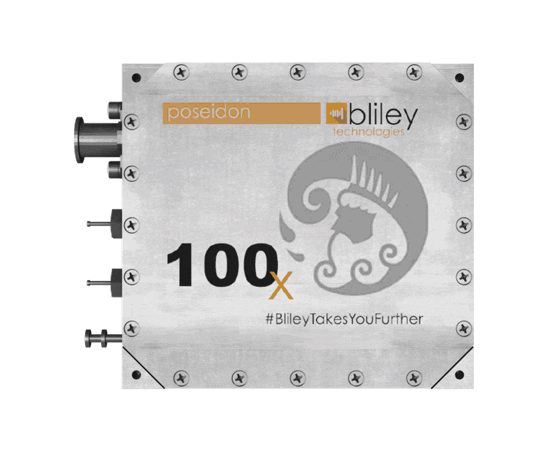

Poseidon 2/2i shown

Connect and GO!

Installation has never been quicker and easier with the Poseidon series OCXO oscillator. The simplified electronic interface allows for convenient connection access. It also offers easy access to the SMA connection and mounting holes to help save time and frustration. Just connect and let Poseidon do the rest!

dimensions

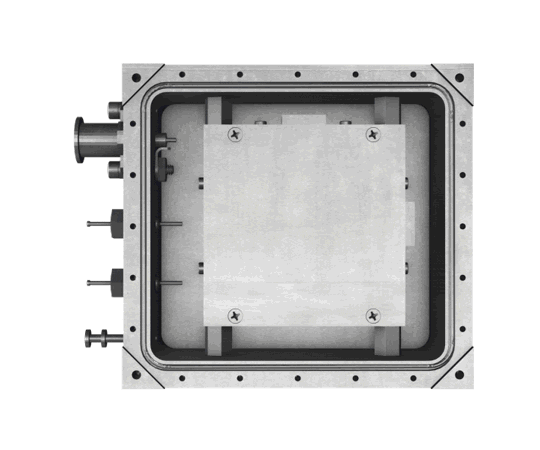

passive isolation

300to2Khertz offset

Anti-vibration!

The Poseidon Series is specifically designed for high vibration environments where dynamic phase noise performance is paramount. The active compensation and passive isolation provide up to 100x improvement in acceleration sensitivity over standard oscillators. Maintaining low phase noise is a breeze for our oscillators.

isolation

active compensation

10to 300hertz offset

Anti-vibration!

The Poseidon Series is specifically designed for high vibration environments where dynamic phase noise performance is paramount. The active compensation and passive isolation provide up to 100x improvement in acceleration sensitivity over standard oscillators. Maintaining low phase noise is a breeze for our oscillators.

compensation

integrated phase noise
(100Hz to 1MHz)
2019-09-Bli-g-sensitivity-graph

poseidon 1 & 2

0.020ppb/g

poseidon 2i

0.035ppb/g

poseidon 3

0.050ppb/g

poseidon 4

0.010ppb/g

Challenge us to eliminate all phase noise!

If you have a unique shock and vibration profile that is generating phase noise to your master reference oscillator, we'd like to hear about it! Request a custom quote for a low phase noise oscillator.

g-sensitivity

10 MHz Nominal Frequency

@10 hz Offset


poseidon 1, 2 & 3

-120dBc/hz

nominal frequency 10 MHz

poseidon 2i

-118dBc/hz

nominal frequency 10 MHz

poseidon 4

-90dBc/hz

nominal frequency 10 MHz

@100 khz Offset


poseidon 1, 2 & 3

-165dBc/hz

nominal frequency 10 MHz

poseidon 2i

-162dBc/hz

nominal frequency 10 MHz

poseidon 4

-177dBc/hz

nominal frequency 100 MHz

DO-160 curve c (random vibration)

Poseidon 2 Phase noise graph

Challenge us to eliminate all phase noise!

If you have a unique shock and vibration profile that is generating phase noise to your master reference oscillator, we'd like to hear about it! Request a custom quote for a low phase noise oscillator.

dynamic phase noise

std frequencies supply voltage startup power operating power operating temp shear isolation axial isolation

poseidon 1

heavy duty isolation

5to160mhz

12or15vdc

7watts

3watts

-40to85°C

65hz

65hz

poseidon 2

5to160mhz

12or15vdc

7watts

2.5watts

-40to85°C

35hz

85hz

poseidon 2i

commercial grade

5to160mhz

12or15vdc

7watts

2.5watts

-40to85°C

35hz

85hz

poseidon 3

low power

10to160mhz

5or3.3vdc

0.500watts

0.200watts

-40to85°C

120hz

300hz

poseidon 4

heavy duty isolation ultra low-g integrated PLL

80to160mhz

5or3.3vdc

7watts

3watts

-40to85°C

65hz

65hz

Challenge us to eliminate all phase noise

If you have a unique shock and vibration profile that is generating phase noise to your master reference oscillator, we'd like to hear about it! Request a custom quote for a low phase noise oscillator.
