Brief Descption


The Iris Series OCXO is specifically designed for commercial space Low Earth Orbit (LEO) applications, designed to be radiation tolerant for both Total Ionizing Dosage (TID) and Linear Energy Transfer (LET) typical of LEO orbits. Iris offers excellent phase noise performance and g sensitivity.

The Hyas Series 1PPS Disciplined OCXO is suited for clock distribution applications where precision timing is mission critical.

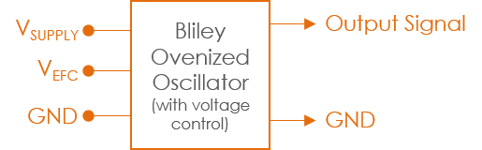

Block Diagram

LEO Space OCXO

Family Type Freq Range Stability PHN, dBc/Hz Supply Package Datasheet

Iris<br>SP-EIris<br>SP-E

Iris
SP-E
LEO Space 10 to 100MHz ±25ppb*,
±50ppb,
±100ppb
(100MHz @ 25°C)
-93 @ 10Hz
-125 @ 100Hz
-150 @ 1kHz
-168 @ 10kHz
-168 @ 100kHz
5.0v 1" x 1"

Hyas<br>HYAHyas<br>HYA

Hyas
HYA
LEO Space
GPSDO
10MHz,
50MHz,
100MHz
±100ppb (10MHz @ 25°C)
-90 @ 1Hz
-123 @ 10Hz
-145 @ 100Hz
-150 @ 1kHz
-160 @ 10kHz
-160 @ 100kHz
5.0v 3.35" x 1.35" x 0.81"


Brief Descption


The Aether Series TCXO is specifically designed for commercial space Low Earth Orbit (LEO) applications, designed to be radiation tolerant for both Total Ionizing Dosage (TID) and Linear Energy Transfer (LET) typical of LEO orbits. Aether offers excellent phase noise performance.

Block Diagram

TCXO Block Diagram

Family Type Freq Range Stability Temp Range Supply Package Datasheet

Aether<br>SPT2Aether<br>SPT2

Aether
SPT2
Sine
Clipped Sine
10 to 150MHz ±1.2ppm -40°C to +85°C 3.3v 14-pin DIP
