New Space and Beyond

The next “space race” has already begun…

Low-cost master reference oscillators and space oscillator solutions
(without sacrificing performance and reliability)

Download Datasheets Instant Quote
medusa-logo-85

Let Bliley be your spacecraft’s precision timing and frequency distribution source

Satellite-hand-drawn-3

#BlileyOnBoard

The space industry is going through a tremendous paradigm shift. Companies like SpaceX, Rocket Labs, and Blue Origin are making access to space more affordable. The need for triple-redundant, over-engineered, 'exquisite' space hardware is disappearing. A new approach to risk management is needed in order to achieve low- cost, high-reliable solutions to compete in the space revolution. This is true for both large GEO satellites and MEO/LEO satellite constellations with thousands of smaller satellites.

Bliley is enabling the universe's largest constellations into this New Space revolution. We understand that every constellation & spacecraft has its unique set of requirements. Bliley offers custom designed solutions using standardized core technologies. This includes our Medusa Series and Iris Series products during RFI/RFP stages to ensure all design trades are properly explored.

Contact us for a full proposal

New Space

Bliley is leading the way for new space communications

Bliley is proud to provide the heartbeat of precision spacecrafts with over 50 years of space heritage experience (and counting).

We start with our ultra stable and high performing space Crystals, TCXOs, and OCXOs as the fundamental timing source. We’ve built a modular design approach that allows our customers to uniquely define their spacecrafts timing needs.

From a highly stabilized low frequency (1MHz to 160MHz) quartz clock (with or without amplified multi-channel distribution), to a fully integrated synthesized multi-frequency Local Oscillators (LO) (up to 22GHz with amplified multi-channel distribution)… We have the building blocks!

Bliley’s new space product lines are specifically designed for New Space (LEO/MEO) radiation environments. Our innovative approach includes the following:

  • Maximize the use of COTS (Commercial-Off-The-Shelf) components with a strict guideline and up-screening process to ensure radiation survivability
  • Radiation hardness by design to ensure graceful degradation of critical specs
  • Inherent tin-whisker mitigations to allow for the use of automotive and lead-free parts

We leverage our in-depth catalog of up-screened components with heritage combined with other radiation harden strategies to meet your mission life.

New Space

Bliley is leading the way for new space communications

We specialize in GPS disciplined oscillators (GPSDO) that take advantage of lower altitude satellite constellations that have access to GPS timing signals. Our many years of highly-reliable military Assured PNT driven technologies are perfectly transferable to our new space communication applications. Precision timing is our specialty!

So, add #BlileyOnBoard to be your spacecraft’s fully space proven timing device, Master Reference Oscillator (MRO), and/or Frequency Generation Unit (FGU) as the precision heartbeat solution of your satellite’s sophisticated payload that requires a synchronized frequency control.

If you're team is ready to think differently about an approach to space timing & communications, we're here to take you further.

  • Request Bliley’s Space Heritage Fact Sheet (Coming soon)
  • Request Bliley’s Ballpark Pricing sheet to help budget your next mission!
  • Request Bliley’s Medusa Configuration Video to learn how easy it is to keep cost low! (Coming soon)

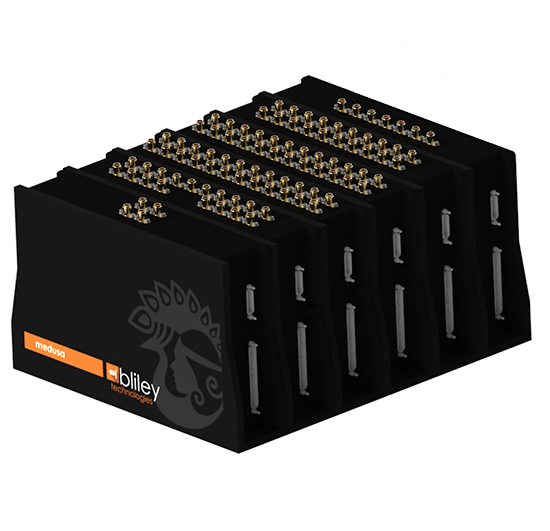

Medusa-FGU

Medusa FGU (Frequency Generation Unit)

The Bliley Medusa FGU product line is a fully integrated, synchronized frequency control unit that leverages Bliley’s 50+ years of quartz space timing heritage. It continues to fly deeper into the Kuiper belt 4.1M miles away and counting! The Medusa platform provides the following benefits:

  • Fully Integrated Design for the Spacecraft’s Timing Need
  • Compact design for low size and mass
  • Modular design elements for maximum flexibility
  • Iris GPS Disciplined OCXO solution with LEO Constellation
  • Heritage
  • GPS disciplined for long-term stability
  • Integrated Power Supplies that can receive unregulated spacecraft power
  • Multi-channel Amplified Frequency Distribution
  • Fully Redundant Solution
  • Lowest cost LEO Constellation solution in the market
That is just the start! Bliley can fully customize for your spacecraft’s communication and timing needs!
Contact us for a full proposal

frequency generation unit

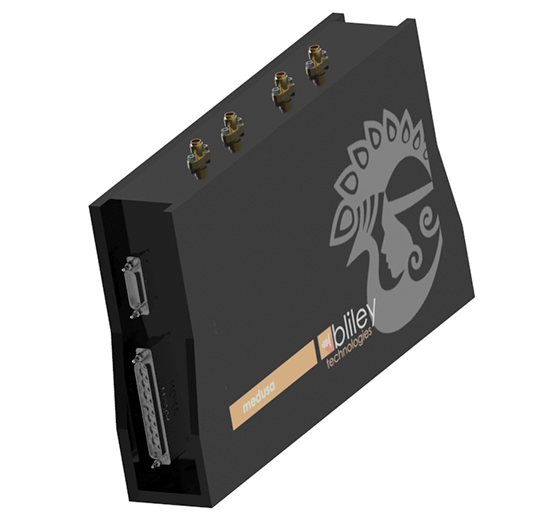

Medusa-MROD

Medusa MROD (Master Reference Oscillator with Distribution)

Building from the Bliley Medusa FGU product we can offer just the MRO with frequency distribution. The Medusa platform provides the following benefits:

  • Fully Integrated Design for the Spacecraft’s Timing Need
  • Compact design for low size and mass
  • Modular design elements for maximum flexibility
  • Iris GPS Disciplined OCXO solution with LEO Constellation
  • Heritage
  • GPS disciplined for long-term stability
  • Integrated Power Supplies that can receive unregulated spacecraft power
  • Multi-channel Amplified Frequency Distribution
  • Fully Redundant Solution
  • Lowest cost LEO Constellation solution in the market

That is just the start! Bliley can fully customize for your spacecraft’s needs!

Contact us for a full proposal

master reference oscillator w/ distribution

Medusa-FGU

height

15cm

length

25cm

width

5cm

weight

1.66kg

One slice shown

Connect and GO!

The fully integrated Medusa space solution allows Bliley to fully customize each “Slice” as required for the mission. The bottom of the Slice is designed to transfer the heat to the spacecrafts heat pipes. Once the product is delivered to the customer’s assembly site, you simply bolt, connect power, communications I/O, and RF signals and GO!

* Weight shown is an average weight of a single slice with redundant functionality. Weights will slightly change based on actual solution implemented. A full weight calculation will be provided by Bliley.

dimensions

Specifications

frequency range unregulated supply regulated supply mission life* RF outputs GPS disciplined** Command/telemetry

medusa

FGU

0.16 to 22 ghz 28 to 100 vcd 15 to 5 vcd 10 to 15+ years 16 per slice YES YES

medusa

MROD

10 to 160 mhz 28 to 100 vcd 15 to 5 vcd 10 to 15+ years 16 per slice YES YES

iris

MRO

10 to 160 mhz N/A vcd 5 vcd 5 to 10+ years 2 per units YES YES

hyas

MRO

10 to 160 mhz N/A vcd 5 vcd < 5 years 1 to 4 per unit YES YES


space products

  • Request Bliley’s Space Heritage Fact Sheet (coming soon)
  • Request Bliley’s Ball Park Pricing sheet to help budget your next mission!
