Data SheetFrequency RangeOutputSupplyPackageFeatures / Series

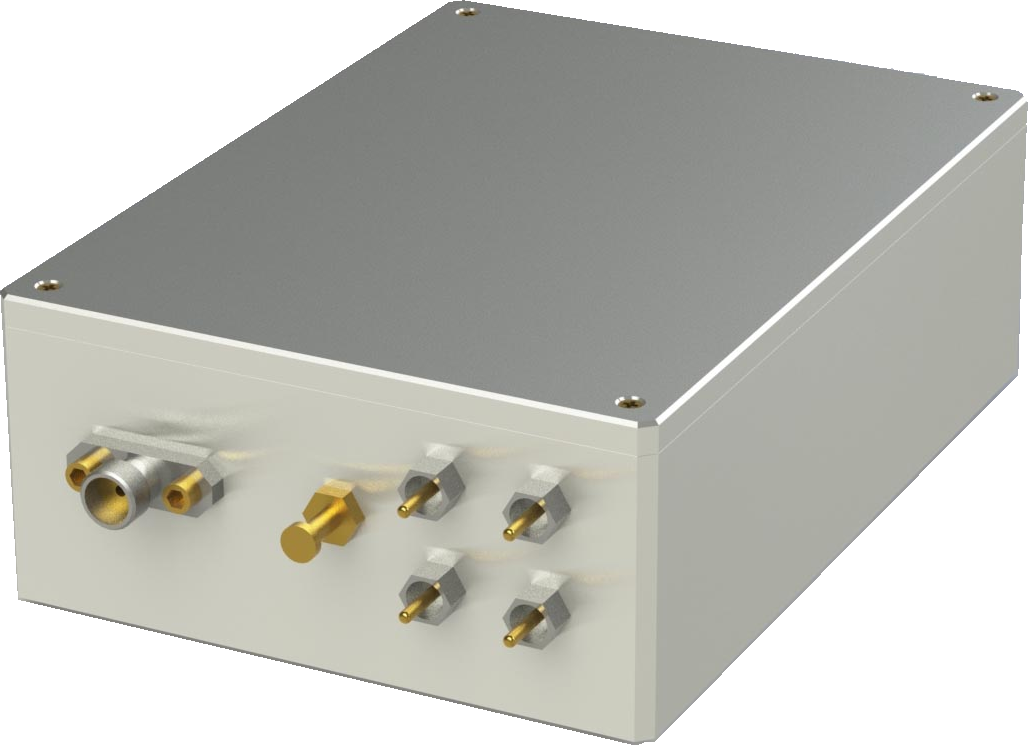

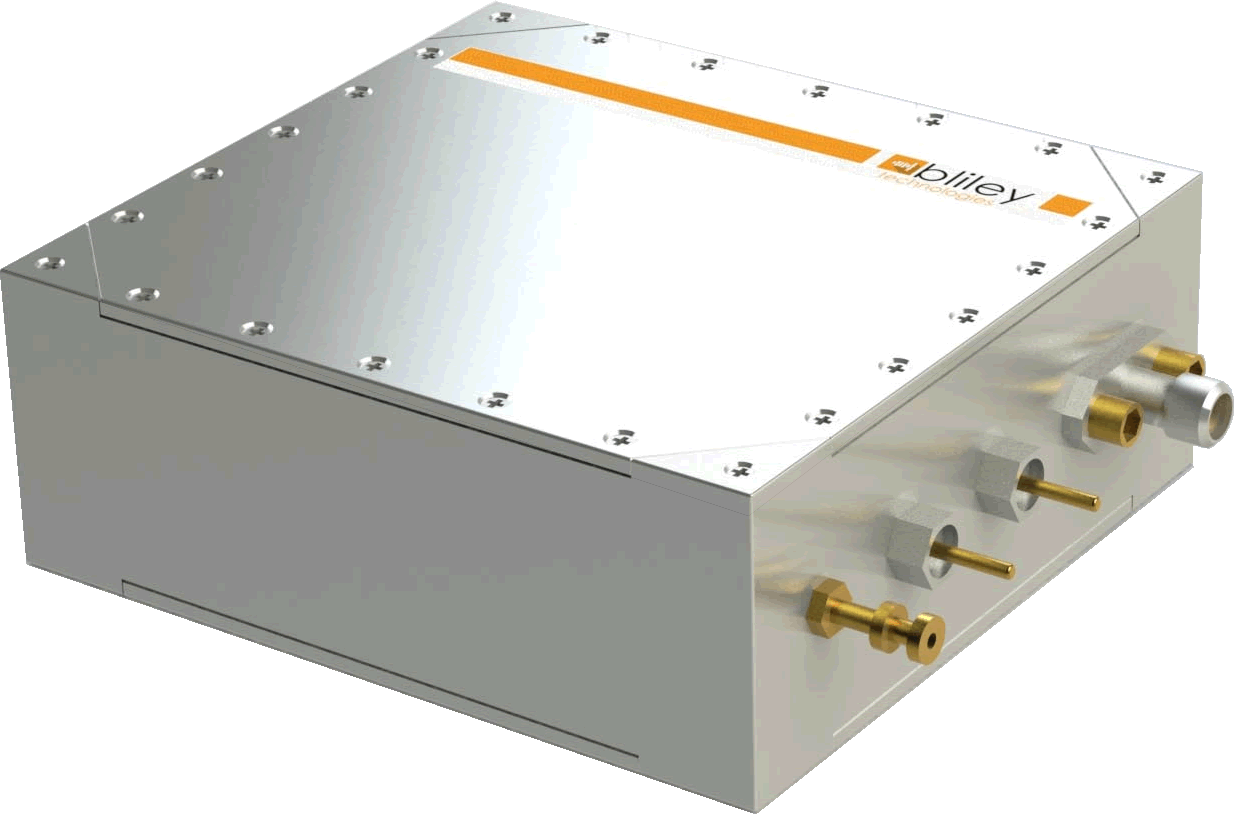

Poseidon Series
PDF File5 to 130 MHzSINE WAVE12v
15v
82.6mm x 114.3mm x 38.1mm
3.25" x 4.5" x 1.5"
- Active and Passive Compensation for Best in Class Low g Performance

- Excellent Frequency Stability Over Temperature

- Superb Long Term Aging

- Typical Acceleration Sensitivity <2e-11/g

- Rugged Package
Zeus Series
PDF File30 to 130 MHzSINE WAVE12v
15v
45.21mm x 75.44mm x 26.16mm
1.78" x 2.97" x 1.03"
- Frequencies from 30 to 130 MHz

- Sine Wave Output

- Multiple phase noise options

- RoHS-6 / Lead-free Compliant Available

- Storage Temperature Range of -55°C to 125°C

- Hi-Rel Version Available on Request

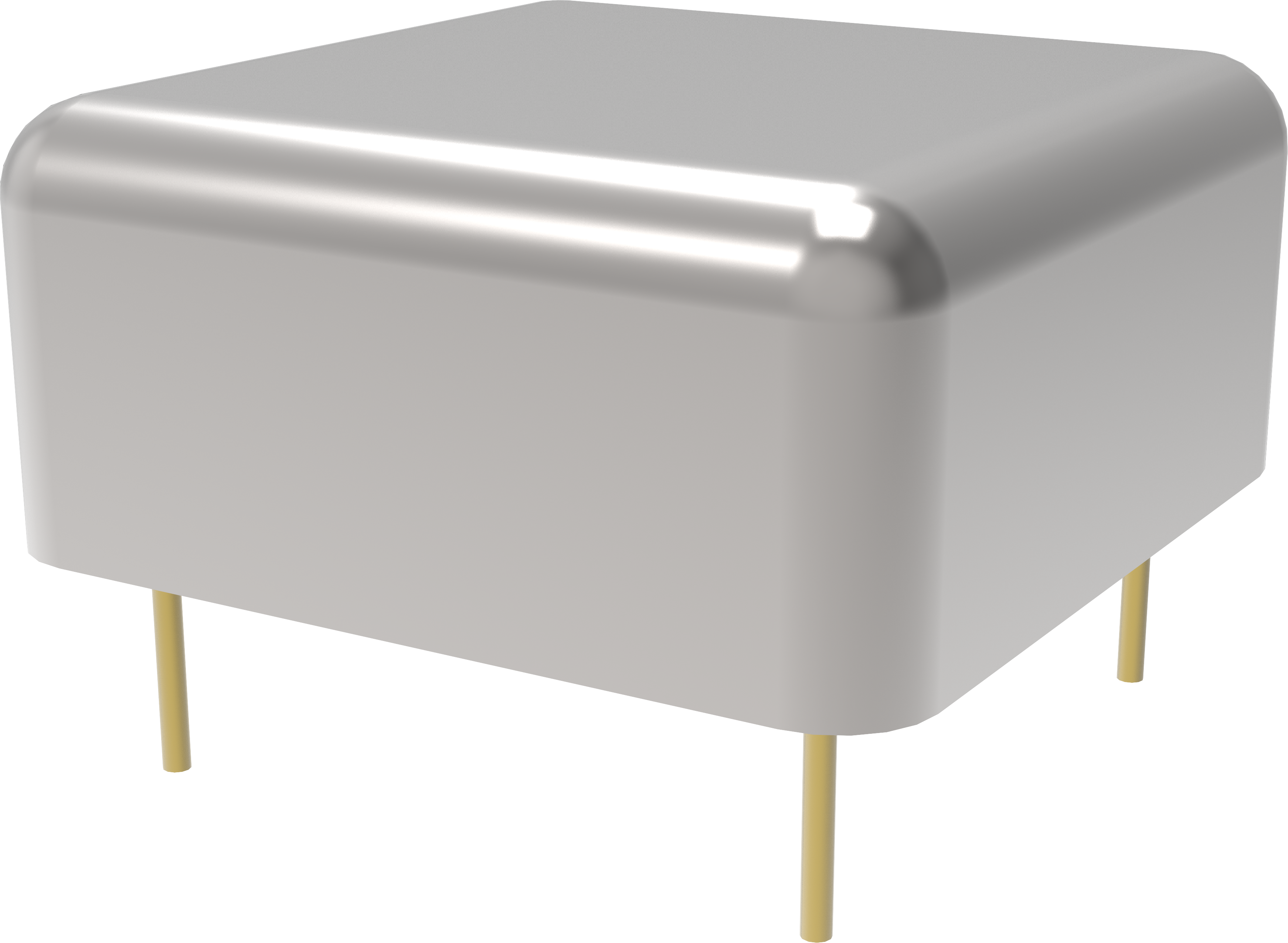

Apollo Series
PDF File30 to 130 MHzSINE WAVE12v
15v
26.16mm x 26.16mm x 11.68mm

1.03" x 1.03" x 0.46"
- Ultra Low Phase Noise

- Excellent Frequency Stability Over Temperature Range

- Standard Frequency 100 MHz

- Many Options Available Including Frequency Range of 30 - 130 MHz
N45T
PDF File10 to 32 MHzHCMOS
SINE WAVE
3.3v
5.0v
25.4mm x 22mm x 11.43mm- 0.45" maximum height SMD-OCXO for base station, telecom infrastructure and network synchronization applications.

- Replaces N45Q
NV45G1480
PDF File100 MHzSINE
12v26.16mm x 25.4mm x 13.46mm

1.03" x 1.00" x 0.530"
- Superior phase noise (-130 dbc/HZ at 100 HZ) combined with very tight stability ( less than +/- 200 ppb ) in a small 1" x 1" package.
NV45AA/AB
PDF File5 to 20 MhzHCMOS
SINE WAVE
5v
12v
15v
26.16mm x 26.16mm x 11.68mm

1.03" x 1.03" x 0.46"
- Standard 1" x 1" footprint offering HCMOS output or very low noise sine wave output ( option c )
N5A Series
PDF File10 MHzCMOS or SINE WAVE
3.3v
5.0v
25.00mm x 25.00mm x 12.50mm- Low Cost

- Excellent Frequency vs Temperature Stability

- Available with +3.3VDC or +5VDC

- Output Level CMOS or Sinewave

- EFC for Precision Frequency Setting

- RoHS 5
N1A Series
PDF File12.8 to 40 MHzLVCMOS3.3v9.70mm x 14.60mm x 7.70mm

.381" x .575" x .303"
- Frequencies from 12.8 to 40 MHz

- LVCMOS Output

- Standard Frequencies of 12.8MHz, 19.2MHz, 20.38MHz, and 38.88MHz, other frequencies available on request

- Storage Temperature Range of -55°C to 105°C
N4A Series
PDF File10 MHzLVCMOS HCMOS3.3v
5.0v
20.50mm x 20.50mm x 10.0mm

or Surface Mount option available in a 22mm x 25.4mm package.
- Low Cost

- Pin-Thru-Hole or SMT Configuration

- Excellent Frequency vs Temperature Stability

- Available with +3.3VDC or +5VDC

- Output Level LVCMOS or HCMOS

- EFC for Precision Frequency Setting

- RoHS 5
N4B
PDF File8 to 30 MhzLVCMOS HCMOS3.3v
5.0v
25.40mm x 22.00mm x 11.07mm

1.0" x .866" x .436"
- Excellent Frequency vs. Temperature Stability

- Output Level LVCMOS or HCMOS

- EFC for precision frequency setting

- RoHS 5
N6A Series
PDF File10 MHzHCMOS, LVCMOS or Sinewave5v
12v
36.20mm x 27.30mm x 13.00mm- Low Cost

- Frequency vs Temperature Stability as low as +/-5ppb

- Available with +5VDC or +12VDC

- Output Level HCMOS, LVCMOS or sinewave

- RoHS 5
NVG47S
PDF File5 to 13 MhzHCMOS
SINE WAVE
5v
12v
36.2mm x 27.3mm x 14.35mm

1.42" x 1.07" x 0.565"
- Standard Euro-style package offering either HCMOS or very low noise sine wave output ( option c )
N47x/NV47x
PDF File5 to 100 MHzHCMOS
SINE WAVE
3.3v
5.0v
12v or 15v
36.10mm x 27.20mm x X.XX mm

1.421" x 1.071" 0.XXX"
- Various frequency stabilities and Operating Temperature Range options

- HCMOS and Sine Wave Output

- Optional Case Height

- Storage Temperature Range of -55°C to 125°C
NV47AE/NVG47AE
PDF File5 to 13 MHzHCMOS
SINE WAVE
5v
12v
36.20mm x 27.30mm x 12.70mm

1.425" x 1.075" x 0.5"
- Frequencies from 5 to 13 MHz

- HCMOS and Sine Wave Output

- Multiple phase noise options

- RoHS-6 / Lead-free Compliant

- Storage Temperature Range of -55°C to 125°C
NV26AJ
PDF File30 to 130 MhzSINE WAVE12v
15v
51.56mm x 51.56mm x 19.05mm

2.050" x 2.0507" x 0.75"
- Low phase noise and high power out with excellent long-term aging and low power consumption.
NVG79D&E
PDF File20 KHz to 54 MHzHCMOS
SINE WAVE
3.3v
5.0v
12v or 15v
27.58mm x 35.94mm x 20.57mm

1.086" x 1.415" x .810"
- Low Input current during warm-up <250mA

- Warm-up Time as low as <10 Seconds

- Power Input at steady state.
NV79A
PDF File10 to 50 MhzHCMOS SINE WAVE3.3v
5.0v
20.8mm x 13.2mm x 12.7mm

0.82" x 0.52" x 0.50"

CO-02 pkg
- Stratum 3 Compliant,

- Hermitic DIP OCXO

- NV79A
N06
PDF File10 MHzSINE WAVE5v36.20mm x 27.30mm x 23.01mm

1.4250" x 1.075" x .906"
- Available with +5VDC input supply voltage

- Sine Wave output available

- Frequency vs. Temp Stability as Low as +/- .4 ppb
NV79
PDF File50 to 120 MhzSINE WAVE5.0v20.8mm x 13.2mm x 12.7mm

0.82" x 0.52" x 0.50"
- Excellent Phase Noise in a Miniature Package

- 100 MHz Standard Frequency

- Many Options Available Including Frequency Range of 50 - 120 MHz

- 3 Package Styles Available, Surface Mount, Through Hole or
Gull
N/NV47B
PDF File5 to 13 MHzHCMOS
SINE WAVE
5v
12v
36.07mm x 27.18mm x 19.40mm

1.420" x 1.070" x 0.764"
- Excellent frequency stability of 1 ppb -20 to 70

- Low power consumption of 4 watts at startup and 1.5 watts steady state.

- Low phase noise

- 5 or 12 volt supply

- 10 MHz standard frequency

VCXO

Data SheetFrequency RangeOutoutSupplyPackageFeatures / Series
V106A
PDF File5 to 40 MHzN/AN/A3.2 mm x 2.5 mm Ceramic (4pad) - low-cost, minifootprint VCXO well suited for Wireless PBX, SONET-SDH-ATM, ADSL-XDSL, Video, Broadcasting, and a range of telecommunication applications.
V105A
PDF File1 to 54 MHzN/AN/A5.0 mm x 3.2 mm Ceramic (6pad) - Low cost miniature VCXO offering Tri-state Enable/Disable, HCMOS output, andrange of stability choices for all circuits that perform clock/data recovery, frequency translation and card synchronization functions.
V85F
PDF File1.2 to 200 MHzN/AN/A7.0 mm x 5.0 mm Ceramic (6pad) - Low cost industry-standard SMD VCXO offering a range of stability choices, HCMOS output, and excellent noise performance for card synchronization functions such as SONET/SDH timing central and line cards offering Tri-state Enable/Disable.
V85G
PDF File1.5 to 200 MHzN/AN/A7.0 mm x 5.0 mm Ceramic (6pad) - Ultra-Low jitter (0.3 ps 12KHz to 20MHz) VCXO ideal for noise sensitive data transmission standards such as SONET/SDH, 10 GBE, and fiber channel Supplied with PECL or LVDS outputs.
V85H
PDF File1.5 to 700 MHzN/AN/A7.0 mm x 5.0 mm Ceramic (6pad) - VCXO that Provides ultra-High frequencies to 700 MHz with either PECL or LVDS outputs for SONET/SDH, 10 GBH, clock/data recovery, and clock smoothing applications.
V1A
PDF File50 to 125 MHzN/AN/A14.0 mm x 9.0 mm Ceramic (4pad) - Provides superior phase noise performance. Available in frequencies from 50.0MHz to 125 MHz, 9mm x 14mm SMD FR4 package, HCMOS output, RoHS/Lead-free compliant
V103F
PDF File1 to 800 MHzN/AN/A14.0 mm x 9.0 mm Ceramic (6pad) - VCXO that Provides a wide range of options in temperature stability, pullability, and operating frequency range in a 9.0mm x 14.0 mm FR4 SMD package.
V103G
PDF File1 to 200 MHzN/AN/A14.0 mm x 9.0 mm Ceramic (6pad) - VCXO that Provides a wide range of options in temperature stability, pullability, and operating frequency range in a 9.0mm x 14.0 mm FR4 SMD package.

TCXO

Data SheetFrequency RangeOutoutSupplyPackageFeatures / Series
T107A
PDF File15 to 40 MHzCLIPPED SINE2
2.5
2.5 x 2.0mm- Offers a wide range of performance options in a miniature 2.5 x 2.0mm ceramic SMD package
T106A
PDF File10 to 52 MHzCLIPPED SINE2.5
3.3
3.2 x 2.5mm- Offers a wide range of performance options in a miniature 3.2 X 2.5mm ceramic SMD package
T106D
PDF File10 to 52MHzClipped Sine, HCMOS2
2.5
3.2 x 2.5mm- Offers a wide range of performance options in a miniature 3.2 X 2.5mm ceramic SMD package
TV105D
PDF File10 to 40 MHzClipped Sine, HCMOS3.3
5
3.2 x 5mm- Provides a wide range of options in temperature stability, operating frequency range, and electronic frequency adjustment in a miniature 3 x 5 mm ceramic SMD package.
T105B
PDF File5 to 52 MHzCMOS2.5
3.3
3.2 x 5mm- Provides a CMOS output in two different in temperature stabilities and temperature ranges
TV105A
PDF File10 to 40 MHzCMOS / CLIPPED SINE3.3
5
3.2 x 5mm- Offers a broad selection of temperature ranges, stability options, and wide operating frequency range.
T85B
PDF File5 to 40 MHzCMOS / CLIPPED SINE3.3
5
5.0 x 7.0 x 2.0 mm- Stratum 3 overall stability in either clipped sine wave or HCMOS
T85H
PDF File5 to 52 MHzCMOS / CLIPPED SINE3.3
5
5.0 x 7.0 x 2.10 mm- Available in frequencies from 5 to 52 MHz with 10 MHz, 12.8 MHz.

16.384MHz 19.2MHz, 19.44MHz, 20Mhz, 26MHz, 40MHz, and 50MHz all being standard.

- +/-5 ppm frequency pull range available

- High performance temp. stability and phase noise

- RoHS-6 / Lead-free compliant
T85J
PDF File5 to 52 MHzCMOS / CLIPPED SINE2.5
3.3
5.0 x 7.0 x 2.10 mm- Available in frequencies from 5 to 52 MHz with 10 MHz, 12.8 MHz, 16.384MHz, 19.44MHz, 26MHz, 40MHz, and 50MHz all being standard.

- +/-5 ppm frequency pull range available

- Low cost performer

- RoHS-6 / Lead-free compliant
TV79B
PDF File10 to 40 MHzHCMOS, CLIPPED SINE3.3
5
20.82 x 13.21 x .35 mm- Excellent Frequency Stability Over Temperature, Low Power Consumption, Phase Noise Options,RoHS-6/Lead-free Compliant Standard
T45G
PDF File20 to 120 MHzSINE WAVE , HCMOS2
2.5
26.16 mm x 26.16 mm x 13.46 mm
1.03" x 1.03 " x .53"
- Tight Stabilities as low as +/- 5 ppm over 55°C to +125°C
- Ruggedized 4-Point mount crystal
- RoHS compliant version available
